Volkswagen has provided full details of its upcoming electric car, the VW Golf blue-e-motion, which is scheduled for mass-market debut in 2014.
The VW Golf blue-e-motion is powered by 26.5 kWh lithium-ion battery pack and has an electric motor with a maximum power output of 85 kW / 115 PS and a continuous power output of 50 kW / 69 PS. That’s enough for driving range of up to 93 miles (150 km) in normal conditions.
The Golf blue-e-motion can reach a top speed of 135km/h (86mph) and accelerate from 0-100km/h (0-62 mph) in 11.8 seconds.
The e-Golf’s 30 battery modules – consisting of 180 lithium-ion cells (energy capacity: 26.5 kWh) – are installed in spaces adapted to the vehicle architecture. They can be found in the floor of the bootspace (fully usable cargo capacity: 275 liters), under the rear bench seat and in the centre tunnel of the underbody (between the front seats). A separate air cooling system ensures a constant thermal environment in the battery compartment. The battery modules weigh a total of 315 kilograms.
Instruments tailored to electric driving
The driver can see how much energy is being demanded by the “electric pedal” at any given moment on the kW gauge (replaces the classic tachometer); drivers strive to keep the kW reading as low as possible practically intuitively. A range indicator is also integrated in this round instrument. The speedometer, located on the right side as usual, integrates another small gauge that provides information on the battery charge state.
Individual choices in battery regeneration

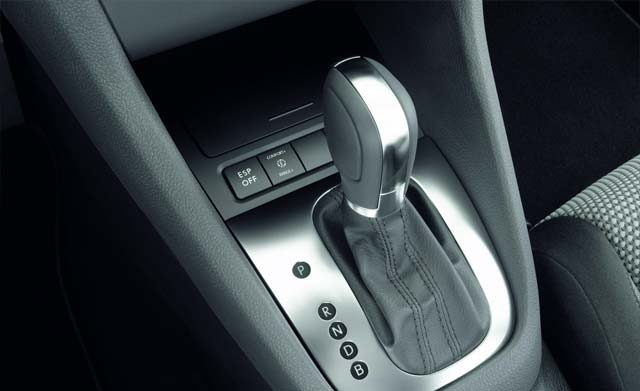

A new feature is the display of regeneration intensity in the multifunction display between the kW instrument and the speedometer. In battery regeneration, the driver has the option of pre-setting the braking energy recovery strategy over four stages (D to D3) via the automatic gearshift lever or gearshift paddles on the steering wheel. In the lowest stage (D), the car “sails” as soon as the driver’s foot leaves the “electric pedal” – now the Golf blue-e-motion moves with very low drag; it is only “slowed” by the rolling resistance of the tyres and air resistance. In the D3 stage, or B for braking, on the other hand, the maximum amount of kinetic energy is recovered and fed to the battery. In addition, the electrical energy consumption of the automatic climate control unit and its blower can be called up in the multifunction display.
Three driving profiles control comfort, dynamics and range
In addition, an active driving profile can be set; this lets the driver select priorities in advance: between maximum range, maximum comfort and maximum dynamics. The selected profile then pre-configures the power of the electric motor, air conditioning control, maximum speed and battery regeneration strategy.
The Golf blue-e-motion offers the three profiles “Normal,” “Comfort+” and “Range+.” In the “Comfort+” profile, the full 85 kW of power is available; in this mode the Golf blue-e-motion can attain the specified top speed of 135 km/h. When the driver activates the “Normal” mode, power is reduced to 65 kW and top speed is lowered to 115 km/h. In the “Range+” mode the engine controller limits power to 50 kW; in this case, the car can reach a maximum speed of 105 km/h. At the same time, the air conditioning system is completely deactivated. The selected profile is shown in the multifunction display.
Full charging via the VW logo

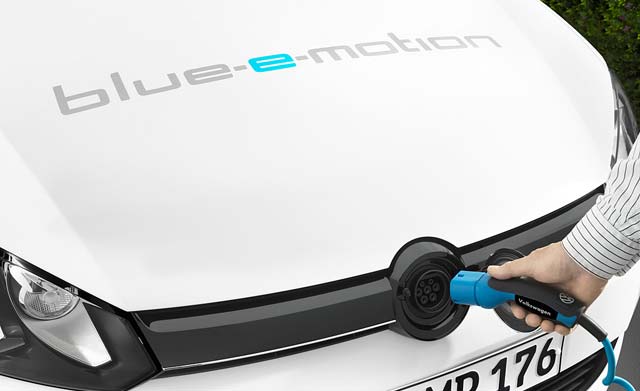

The Golf blue-e-motion is charged via a plug connector behind the folding VW logo on the radiator grille. A pictogram of a plug connector in the multifunction display indicates that the charging cable is correctly inserted and locked. During active charging an LED also flashes in the charge state indicator, and the charge level shown in the indicator is continually updated.
Packaging of the drive system

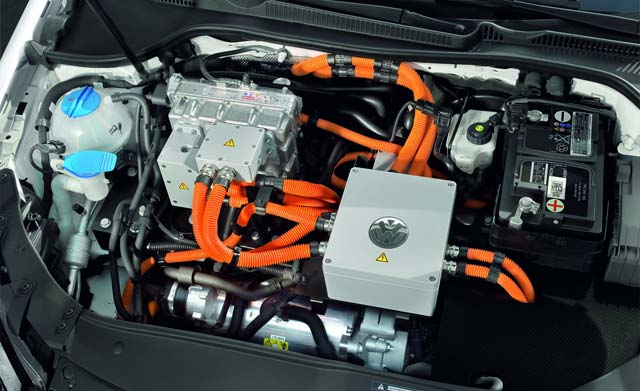

All key primary and secondary drive components were integrated in the front engine compartment. In arriving at this design, developers applied experience they had gained in numerous design studies. As in the Up! blue-e-motion concept car, for example, an integral form of electric drive is used in the Golf blue-e-motion. Core components of the integral drive are the lightweight 80 kg electric motor together with a transmission and differential. Energy management is handled by a high-voltage pulse-controlled inverter that is integrated in the compact integral drive – along with the 12 Volt electrical system’s DC/DC converter and charging module. The entire unit is relatively light and compact; the five-door and five-seat Golf blue-e-motion weighs just 205 kg more than a comparable Golf BlueMotion TDI with DSG – despite the fact that electric car batteries are known to be heavy and weigh 1,545 kg in the concept car. Yet, the car’s safety properties are identical.
Golf blue-e-motion Concept Car – Technical Data
| Dimensions | |
| Length | 4,199 mm |
| Width | 1,786 mm |
| Height | 1,480 mm |
| Wheelbase | 2,575 mm |
| Motor | |
| Motor type | Electric motor |
| Power (max. / continuous) | 85 kW / 50 kW |
| Max. torque | 270 Nm |
| Gearbox / Tyres | |
| Gearbox | EQ 210 (1-speed transmission) |
| Drive type | Front-wheel drive |
| Tyre size | 205/55 R16 |
| Driving performance | |
| 0-100 km/h | 11.8 s |
| Top speed (Comfort+ mode) | 135 km/h |
